Abstract
Channel state information (CSI) is essential for adaptive beamforming and maintaining robust links in wireless communication systems. However, acquiring CSI incurs significant overhead, consuming up to 25% of spectrum resources in 5G networks due to frequent pilot transmissions at millisecond-scale intervals. Recent approaches aim to reduce this burden by reconstructing CSI from spatiotemporal RF measurements, such as signal strength and direction-of-arrival. While effective in offline settings, these methods often suffer from inference latencies in the 5-100 ms range, making them impractical for real-time systems. We present GSpaRC: Gaussian Splatting for Real-time Reconstruction of RF Channels, a method that achieves accurate channel reconstruction with latency in the low-millisecond regime or below. GSpaRC represents the RF environment using a compact set of 3D Gaussian primitives, each parameterized by a lightweight neural model augmented with physics-informed features such as distance-based attenuation. Unlike traditional vision-based splatting pipelines, GSpaRC is tailored for RF reception: it employs an equirectangular projection onto a hemispherical surface centered at the receiver to reflect omnidirectional antenna behavior. A custom CUDA pipeline enables fully parallelized directional sorting, splatting, and rendering across frequency and spatial dimensions. Evaluated on multiple RF datasets, GSpaRC achieves similar CSI reconstruction fidelity to recent state-of-the-art methods while reducing training and inference time by over an order of magnitude. These results illustrate that modest GPU computation can substantially reduce pilot overhead, making GSpaRC a scalable low-latency approach for channel estimation in 5G and future wireless systems.
Pipeline
Overview of the GSpaRC pipeline. Anisotropic 3D Gaussians are splatted at the receiver position; each Gaussian's complex emission is predicted by a lightweight MLP. The transmitter position is constant, so the MLP is conditioned on the receiver position. The rasterizer accumulates contributions into a directional spectrum, supervised against ground-truth measurements during training.
Confidence-Aware Reconstruction

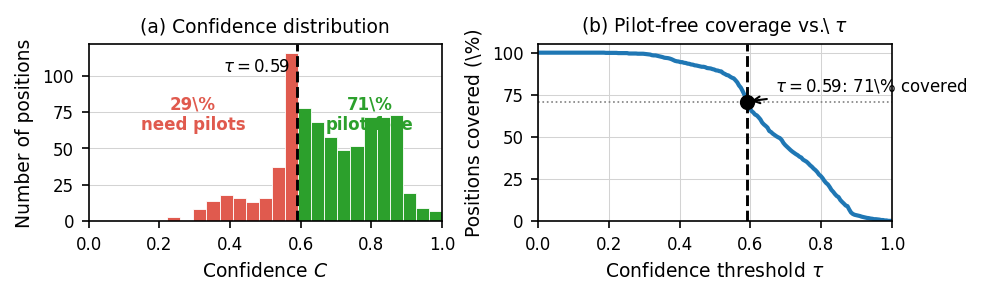

Example confidence distribution and pilot-free coverage on the Argos dataset. (a) Positions with high confidence predicted by GSpaRC require no pilot transmission. (b) Coverage curve showing pilot-free fraction vs. confidence threshold. GSpaRC identifies the approx 70% of receiver positions that exceed the accuracy threshold for downstream tasks.
Datasets and Results
We evaluate GSpaRC on three datasets covering both spectrum and CSI reconstruction: (1) a Sionna ray-traced indoor scene, (2) the real-world RFID spectrum dataset, and (3) the real-world Argos massive-MIMO CSI dataset. Across all three, GSpaRC matches or exceeds prior state-of-the-art reconstruction quality while reducing inference time by over an order of magnitude.
1. Sionna Simulation Dataset
To evaluate GSpaRC in a controlled yet realistic propagation environment, we generate an indoor dataset using the Sionna ray tracer. We use a conference room scene spanning 14m x 10m with a 4m ceiling, including tables, chairs, glass partitions, and irregular wall materials that create rich multipath propagation.
(a) Conference room scene used for Sionna ray-tracing.

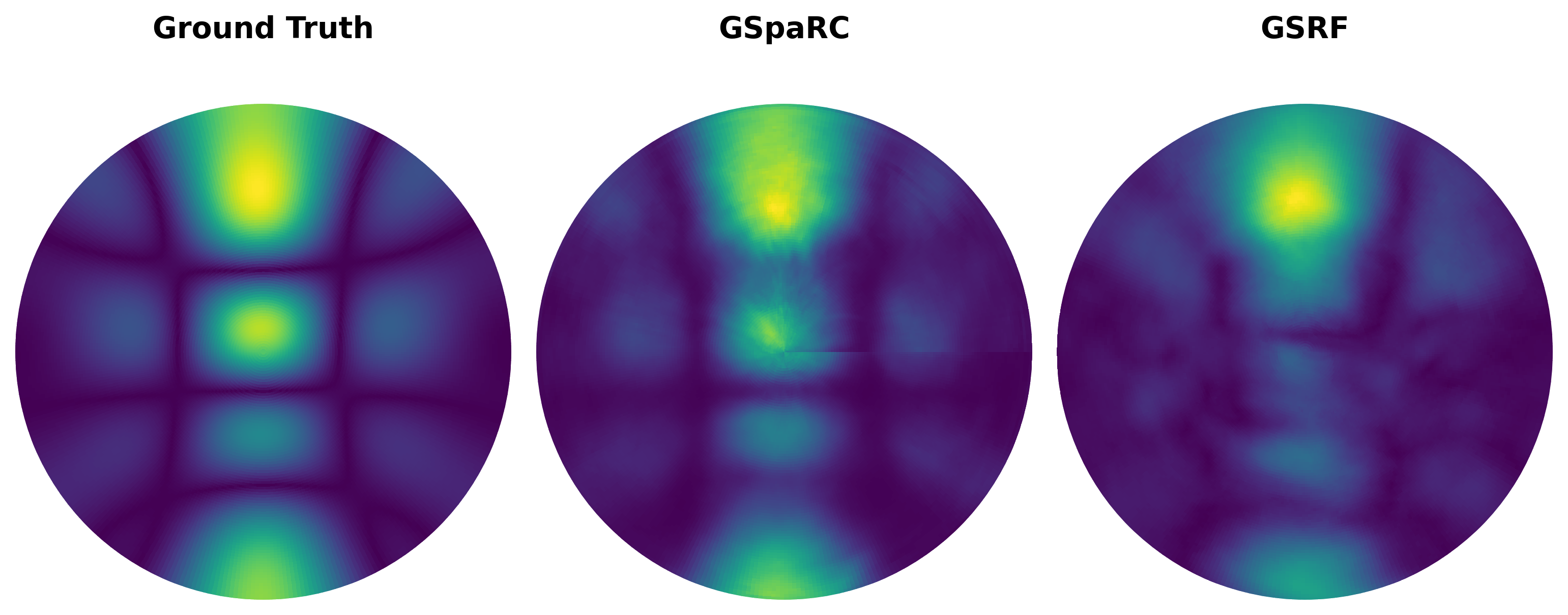

(b) Spectrum reconstruction. Left to right: ground truth, GSpaRC, and GSRF.
Sionna Conference Room
| Algorithm | SSIM ↑ | MSE ↓ | Train (hrs) |
|---|---|---|---|
| NeRF² | 0.69 | 0.00513 | 4.15 |
| WRFGS+ | 0.71 | 0.00550 | 3.67 |
| GSRF | 0.70 | 0.00512 | 1.1 |
| GSpaRC | 0.78 | 0.00417 | 1.0 |
2. RFID Spectrum Dataset
We evaluate GSpaRC on the publicly available RFID Spectrum NeRF² dataset. The receiver is fixed at 915 MHz with a 4×4 antenna array, and an RFID tag transmitter is placed at 6,123 distinct locations, each yielding a spatial spectrum image. GSpaRC matches the best baseline in SSIM while delivering more than 20× faster rendering.
RFID Dataset
| Algorithm | SSIM ↑ | MSE ↓ | Render (ms) ↓ |
|---|---|---|---|
| WRFGS+ | 0.78 | 0.0112 | 8 |
| NeRF² | 0.75 | 0.0101 | 230 |
| GSRF | 0.82 | 0.0094 | 23 |
| GSpaRC | 0.82 | 0.0134 | 0.8 |
3. Argos Massive-MIMO CSI Dataset
Beyond spectrum reconstruction, GSpaRC predicts complex-valued CSI at unseen receiver positions. We evaluate this on the real-world Argos massive-MIMO dataset, an outdoor deployment with a 64-antenna base station at 2.4 GHz across 4,000 user positions. GSpaRC achieves SNR comparable to GSRF while reducing rendering latency by nearly 6×.
Argos Dataset (CSI Reconstruction, antenna 0, 800 test samples)
| Method | SNR 1-SC (dB) ↑ | SNR 26-SCs (dB) ↑ | NMSE ↓ | Render (ms) ↓ |
|---|---|---|---|---|
| GSRF | 23.62 | 20.87 | 0.0247 | 22.76 |
| GSpaRC | 23.52 | 19.59 | 0.0110 | 3.86 |
Downstream Tasks
We evaluate the utility of GSpaRC-predicted CSI for real-time communication tasks using the real-world Argos CSI dataset. These downstream evaluations demonstrate that our confidence-aware approach can effectively replace pilot-based estimation in practical wireless systems.
Confidence-Aware Link Adaptation
Our spatially grounded representation supports real-time link adaptation. By predicting channel quality across receiver locations, GSpaRC enables effective Modulation and Coding Scheme (MCS) selection, achieving throughput nearly identical to that obtained with ground-truth CSI.

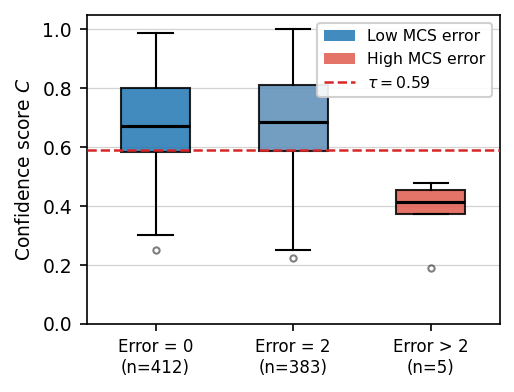

MCS Selection Error Distribution

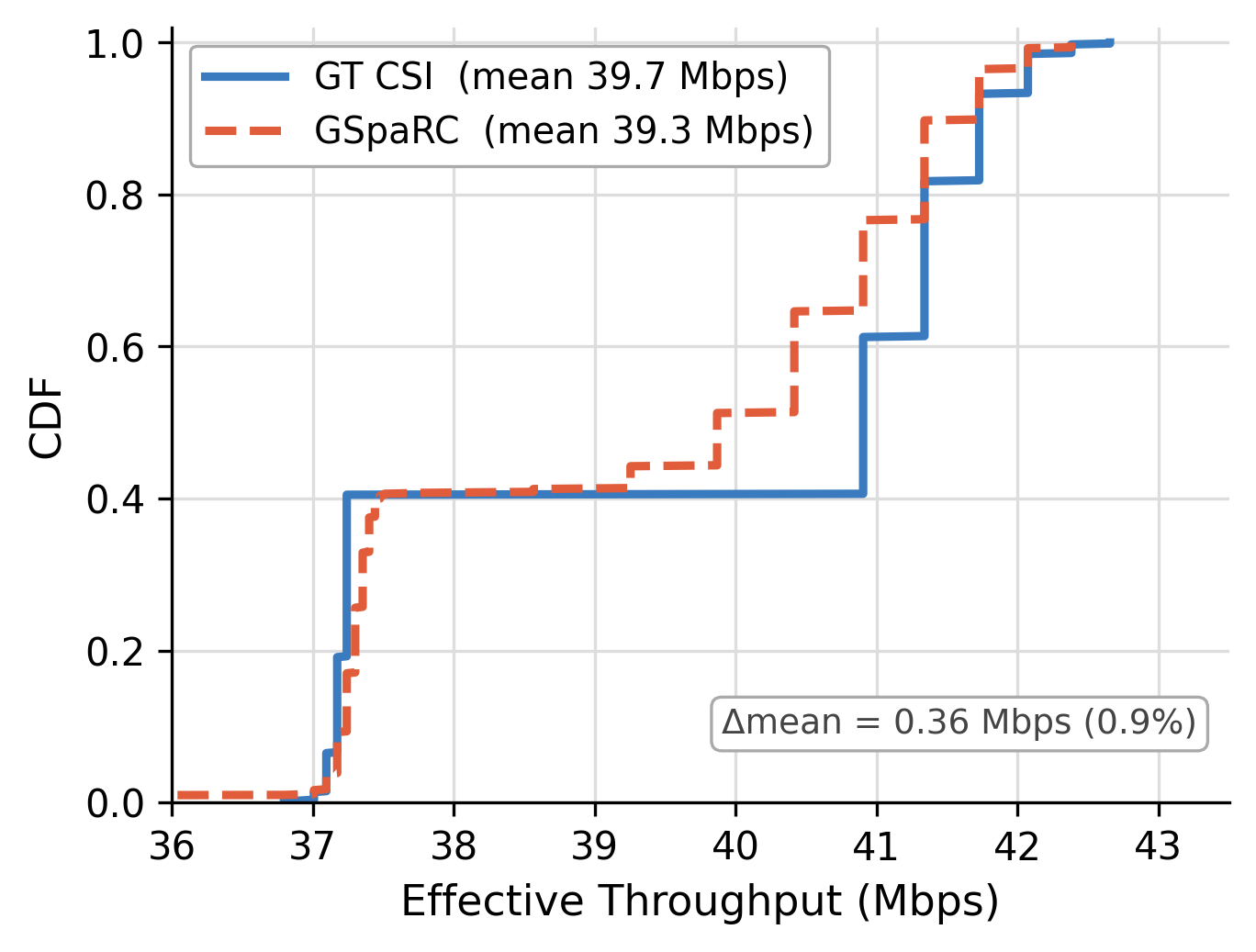

Effective Throughput CDF
Confidence-Aware Communication

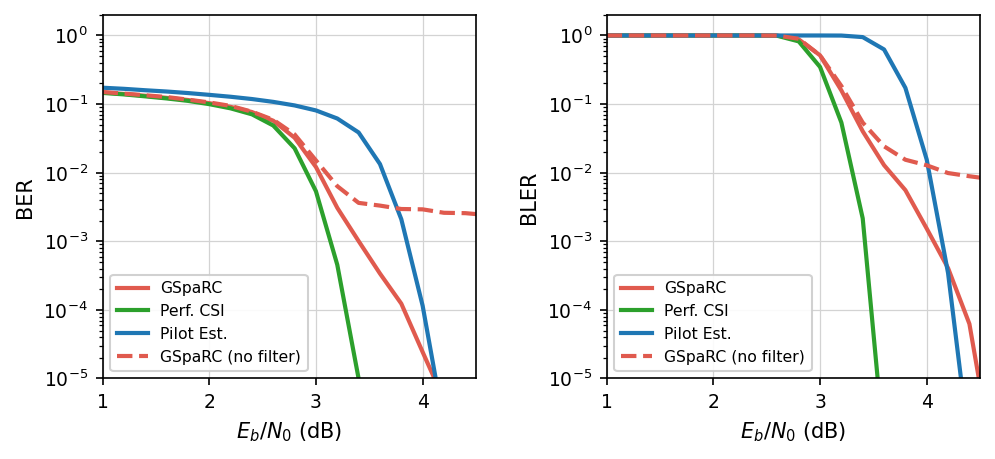

GSpaRC-reconstructed channels enable accurate symbol detection. We evaluate Bit Error Rate (BER) and Block Error Rate (BLER) across different signal-to-noise ratios, demonstrating that our real-time reconstruction matches the performance of perfect CSI in practical regimes.
